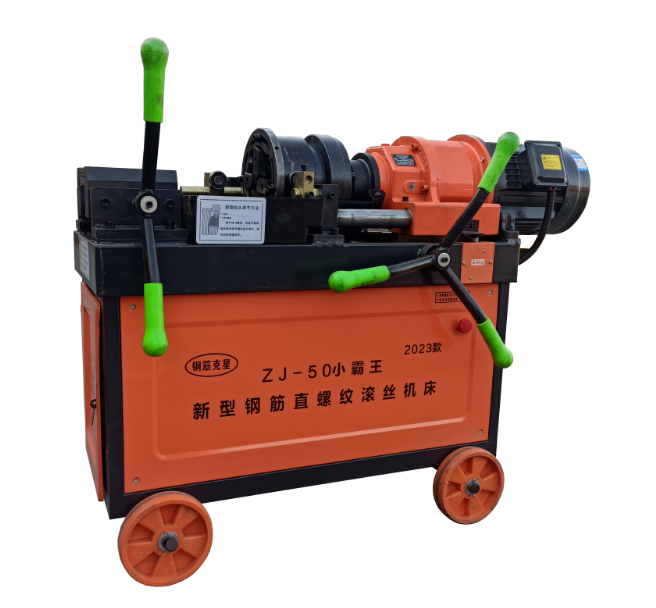

ZJ-50小霸王钢筋直螺纹滚丝机使用说明书
ZJ-50小霸王钢筋直螺纹滚丝机使用说明书
型号 Model | ZJ-50 | 钢筋直径范围 rebar diameter range | Ф12-Ф40mm |
主电机功率 Main motor power | 7.5KW | **螺纹长度 maximum thread length | 90mm |
配用电源 Power supply | 380V | 重 量 weight | 320KG |
电源频率 Power frequency | 50HZ | 出 厂 编 号 factory number | 0205009 |
主轴转速 Spindle speed | 73r/min | 出 厂 日 期 factory date | 2024年6月 June 2024 |
设备安全操作注意事项：
Precautions for safe operation of equipment:
钢筋剥肋滚丝机在使用过程中应注意以下安全事项：
The following safety precautions shall be paid attention to during the use of the rib stripping and rolling machine:
1、施工人员必须进行技术培训，经考核合格后方可持证上岗操作。
1. Construction personnel must be provided with technical training and can only work with certificate after passing the examination.
2、设备电源必须有漏电保护装置；本机必须有可靠的接地操作，防止漏电伤人；设备停用后应切断设备电源。
2. The power supply of the equipment must have leakage protection device; the machine must have reliable grounding operation to prevent the leakage from hurting people; the power supply of the equipment shall be cut off after the equipment is out of service.
3、滚丝头滚到前限位后不停机时应立即切断电源，不要用手去阻止滚丝头转动。
3. The power supply shall be cut off immediately when the rolling head does not stop after rolling to the front limit position. Do not use hands to prevent the rolling head from rotating.
4、滚丝头在运转过程中手不得触摸任何转动部件，如：滚丝头、胀刀触头等。
4. The rolling head shall not touch any rotating parts during operation, such as the rolling head, expanding knife contact, etc.
5、设备维修必须有专门人员进行，不得私自进行维修，改装。
5. The equipment maintenance must be carried out by special personnel, and it is not allowed to carry out maintenance or modification without permission.
6、设备在接通电源后不得用手触摸任何带电电器件，以防触电。不得让水等具有导电能力的物质进行电器箱。
6. After the equipment is connected to the power supply, it is not allowed to touch any live electrical parts by hand to prevent electric shock. Do not allow water and other conductive materials to carry on the electrical box.
